BRISTOL Pumps are engineered with latest design concepts and engineering technology, these pump are ideal for fighting fire. All fabricated parts are standardized and manufactured accurately for its excellent performance, increasing overall durability & reliable operation. Precision balancing of impellers provides mechanical stability, smooth operation and minimal maintenance. Rotating parts & Impellers are constructed with corrosion resistant material. Special metallurgies are also available on request. Simple pump design allows for in-line service without disturbing piping. They are available with electric, diesel, or Electric-Diesel powered sets.

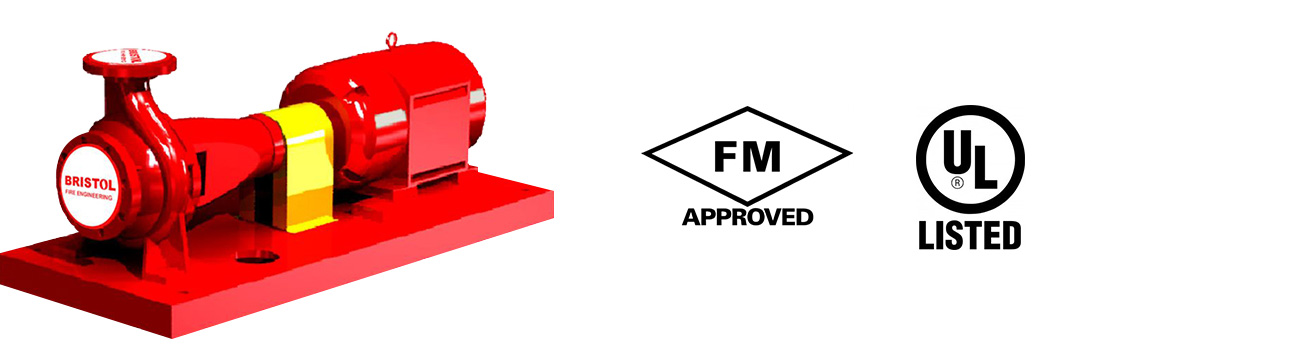

FIRE PUMPS - End Suction

azar end suction

Bristol End Suction Pumps are designed according to NFPA 20 for firefighting applications. This pump is designed with latest technology and has premium components for easy maintenance and absolute efficiency.


- Discharge : Vertical Centerline Discharge
- Wear Ring : Bronze - Is standard for the certified ANSI pumps radially split casing with flanged connections
- Bearing (Ind. & Out.) : Deep Grooved Ball Bearing
- Packing Gland : Immersion Graphite Rope
- Shaft : Stainless Steel - Sleeve shaft as standard for extended seal life
- Gland Cover : Bronze - to house a gland seal
- Lantern Ring : Bronze - to keep packing lubricated
- Impeller : Bronze - Enclosed impeller design ensures maximum efficiency
- Suction : Horizontal End Suction ANSI 150# or 300# flange drilling is available based on material selection
- Casing : Ductile Iron 65-45-12 - Heavy-duty power frame

Passive Use: Self Activating Mount - One of the great benefits of Fire Extinguishing Ball is the fact that it can self activate in the presence of fire when no-one is present. If positioned in the appropriate high-risk area where most fires are likely to start, it will self activate upon reaching the appropriate temperature and extinguish the fire.

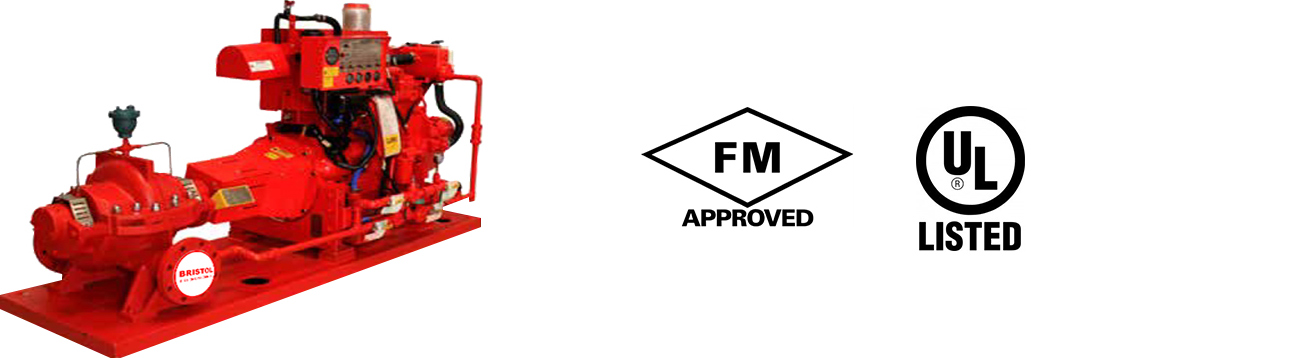

FIRE PUMPS - Horizontal Split Case

azar split

Bristol Split Case Pump is a single stage, non-self-priming, centrifugal volute pump with radial suction and discharge port. This pump has a horizontal pump shaft with the impeller placed in the middle of the shaft and with self contained combination bearing housing and seal chamber on both sides of the impeller. Without disturbing the motor or pipe-work, the split case construction enables the pump casing to be dismantled in the horizontal plane along the drive shaft. Removal and dismantling of the internal pump parts e.g. bearings, wear rings, impeller and shaft seal can then take place.


- In line Pump
- Double Suction
- Low NPSH
- Low axial load on the shaft
- Double Volute
- Improved efficiency (Overall higher efficiency)
- Low radial load on the shaft
- Low axial and radial loads extends wear ring, seal and bearing life, minimize vibration and provides quit operation
- Easy service bearing and packing gland can be changed without removing the top casing half
- UL File No. EX16089

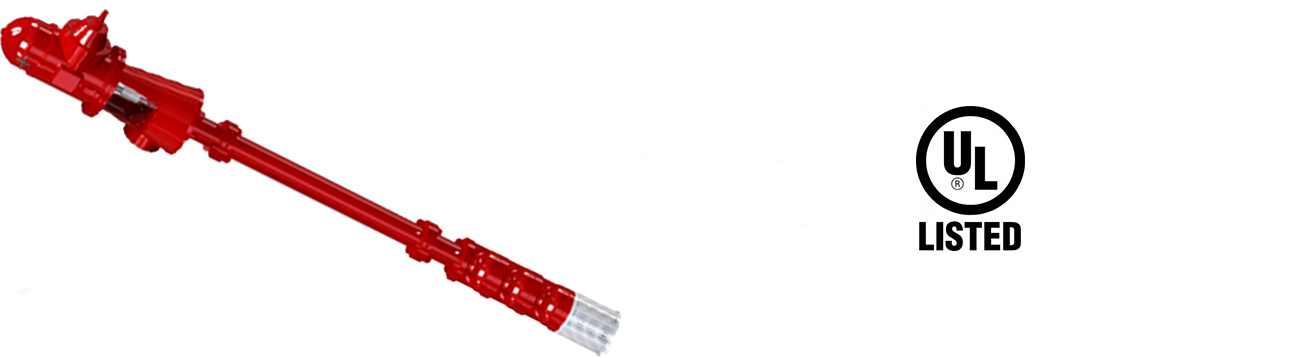

FIRE PUMPS - Vertical Turbine

azar fire turbine

BRISTOL Vertical Turbine centrifugal pump is developed and fabricated by our company, according to NFPA20. This pump is used for any underground water source where the water level is below the pump suction, it's Impeller remains submerged with the water tank at all times.
Where the fire protection water source is located below ground or deck level, the best technical pumping solution is the vertical suspended multi stage turbine pump. With this type of unit the impellers are fully immersed in the water maintaining prime at all times. The pumps are driven by vertical electric motors or by diesel engines through a right angle gearbox.


- Performance and hydrostatic tests
- In compliance with NFPA 20, UL 448 requirements
- Materials of construction: cast iron, bronze fitted
- Sealing arrangement: packing with flushing
- Modular construction: assures complete flexibility in selecting a pump
- Pre-engineered standard components
- Space-saver design: requires minimum floor space
- Static suction lift: permissible by NFPA 20 where water source is located below ground
- Open line shaft: water-lubricated bowl and line-shaft bearings
- Stuffing Box (Gland) - (Bronze) - to press the packing gland into the seal area through bolts
- Bolted bowl: bowls and suction bell are bolted together, allowing easier disassembly
- Dynamic balanced impellers: secured to the shaft with steel locking collets
- Discharge gauge connection

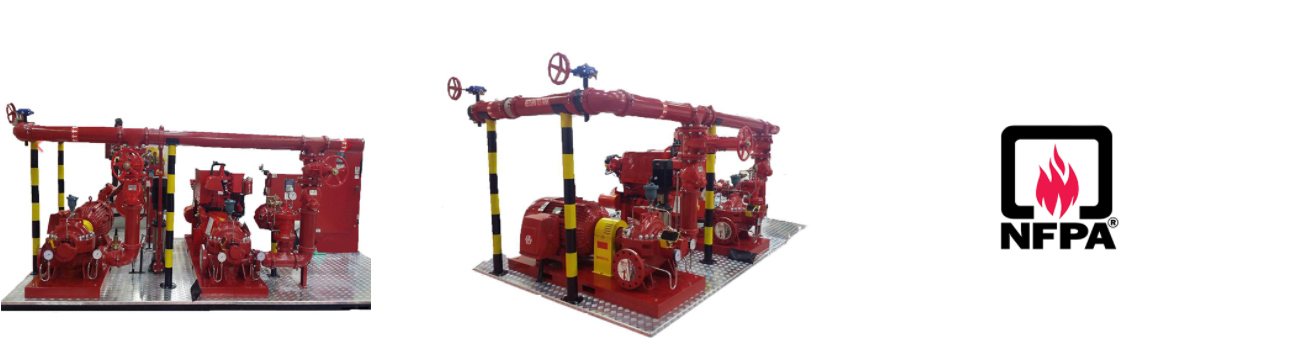

FIRE PUMPS - Packages

azar fire pumps


- State of the art engineering design
- Easy piping arrangements
- A package that meets NFPA20 requirement
- Packaged system tested functionally and hydrostatically in manufacturing facility
- No material lost due to on-site material handling
- Speedy, on-site construction and installation
- Minimum external interface connections

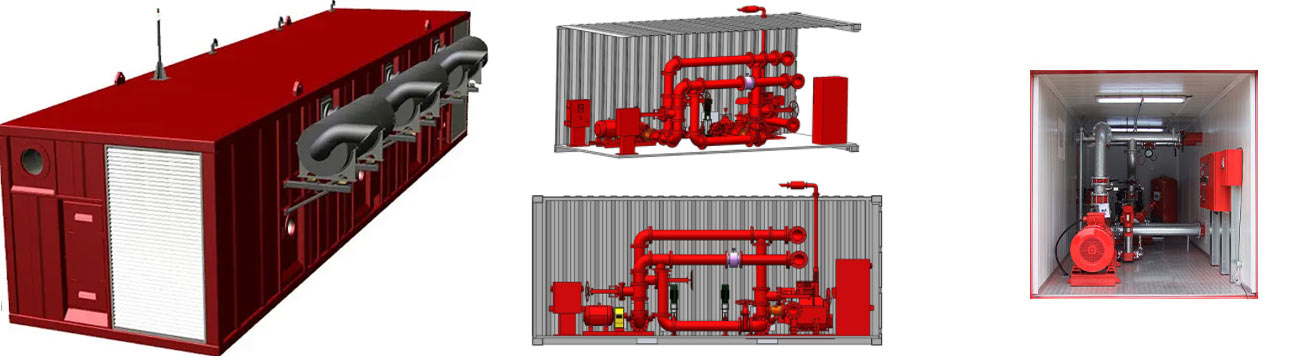

Containerized Firefighting Pump Set

azar fire pumps

In this, firefighting pumps, jockey pumps, its controllers and all accessories are engineered inside the Container. All pipings are in accordance with customer requirements. All large equipment are accessible by doors around the container. Material handling arrangements are provided for easy unit movement.


- Only simple water and power supplies connection at site will make unit operational
- Built in a clean & controlled environment
- Factory tested as per stringent International standard's requirement
- Easy installation of containerized pump
- Significant reduction in time and labour costs
- Eliminates potential coordination problems later on at site
- Integral pumps station
- Compact & safe design
- Reduced environmental noise level
